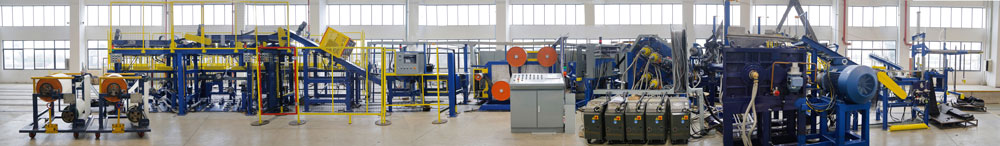

It is mainly used for calendaring inner liner ,under liner of tyre and thin rubber sheet, etc.
|
型號 Model |
XY-4S800 | XY-4S1200 | XY-4S1250 | |
|---|---|---|---|---|
|
輥筒直徑(mm) Roll diameter |
300 | 400 | 450 | |
|
輥筒工作長度(mm) Roll working length |
800 | 1200 | 1250 | |
|
驅(qū)動輥線速度(m/min) Drive roll liner speed |
1.8～18 | 3～30 | 3.5～35 | |
|
制品寬度(mm) Max.product width |
600 | 1000 | 1200 | |
|
制品小厚度(mm) Min.product thickness |
0.2 | 0.2 | 0.2 | |
|
電機(jī)功率(kw) Motor power |
30×2 | 30×4 | 37×4 | |
|
外形尺寸(mm) Overall dimension |
長(L) | 4500 | 5780 | 6060 |
| 寬(W) | 2040 | 3330 | 3150 | |
| 高(H) | 2180 | 3940 | 3600 | |
|
重量(t) Weight |
11.2 | 30 | 35 | |
