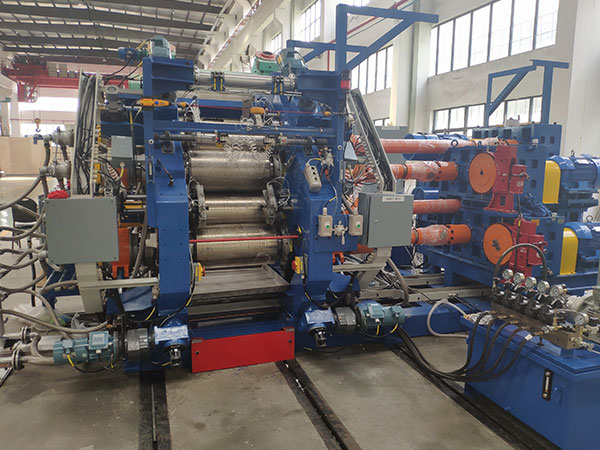

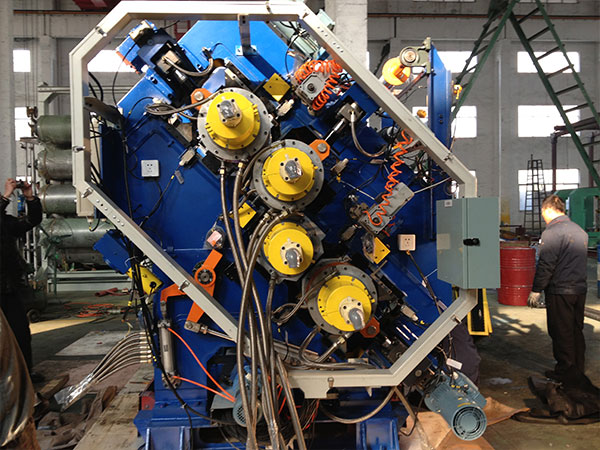

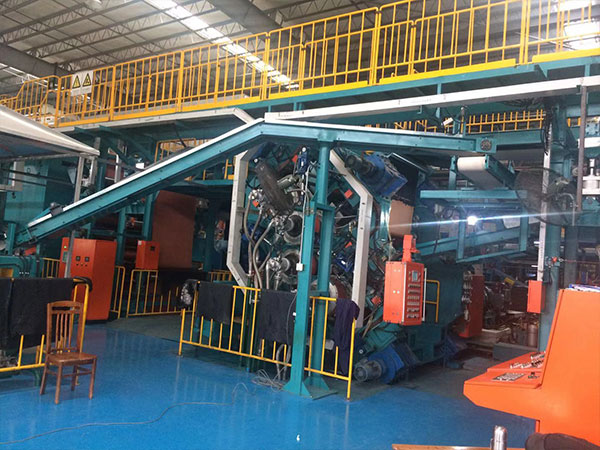

It is mainly used for one-face and double face once continuous coating rubber sheet of fiber cord, canvas and other woven material ,sheeting rubber stock, calendaring thin rubber sheet of for inner liner and airtight layer of meridian tyre.
1.It adopts peripheral drilled roll with good heating and cooling effects.
2.Axis cross ,pre-loading，pull-back device are set to ensure the product’s precision.
3.Each roll is driven by independent motor and speed ratio is adjustable to meet different processes.
4.Control system adopts PLC, safety and reliability , easy operation and high automation.
|
型號 Model |
XY-4Γ1120 | XY-4Γ1200 | XY-4Γ1600 | XY-4Γ1730 | XY-4S660 | XY-4S1200 | XY-4S1250 | XY-4S1500 | XY-4S1730 | XY-4S2030 | XY-4S2250 | XY-4S2500 | XY-4S3400 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
輥筒直徑(mm) Roll diameter |
360 | 400 | 560 | 610 | 356 | 400 | 450 | 510 | 610 | 660 | 710 | 820 | 900 | |
|
輥筒工作長度(mm) Roll working length |
1120 | 1200 | 1600 | 1730 | 660 | 1200 | 1250 | 1500 | 1730 | 2030 | 2250 | 2500 | 3400 | |
|
驅動輥線速度(m/min) Drive roll liner speed |
2～20 | 2.5～25 | 3～30 | 4～40 | 3～30 | 3～30 | 3.5～35 | 3～30 | 5～50 | 5～50 | 5～50 | 5～50 | 5～50 | |
|
制品寬度(mm) Max.product width |
900 | 1000 | 1400 | 1500 | 500 | 1000 | 1200 | 1300 | 1500 | 1600 | 2000 | 2200 | 3100 | |
|
制品小厚度(mm) Min.product thickness |
0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
|
電機功率(kw) Motor power |
55 | 75 | 144 | 160 | 22×4 | 30×4 | 37×4 |
45×2, 55×2 |
75×2, 90×2 |
90×2, 110×2 |
110×2, 132×2 |
160×4 | 220×4 | |
|
外形尺寸(mm) Overall dimension |
長(L) | 5010 | 6320 | 6180 | 7140 | 5350 | 5780 | 6060 | 7150 | 8380 | 8550 | 9350 | 10760 | 16970 |
| 寬(W) | 1610 | 2260 | 2990 | 3220 | 2100 | 3330 | 3150 | 2650 | 3520 | 3520 | 4080 | 4400 | 5500 | |
| 高(H) | 2560 | 2500 | 4110 | 4670 | 2350 | 3940 | 3600 | 3750 | 4740 | 5060 | 5410 | 5960 | 8570 | |
|
重量(t) Weight |
13 | 18 | 45 | 64 | 12.5 | 30 | 35 | 45 | 65 | 73 | 82 | 90 | 165 | |
